Description
Technical Specification
- The handle features fluorocarbon coating surface treatment with a zinc alloy base, providing a uniform grip, smooth touch, and precise positioning.
- Manufactured from high-quality 304 stainless steel, ensuring smooth operation during opening and closing with excellent safety and structural stability.
- Passed neutral salt spray testing for more than 1,000 hours, demonstrating excellent corrosion resistance.
- Endures over 100,000 cycles of repeated opening and closing anti-fatigue testing, ensuring long service life.
- The hinge supports a maximum load capacity of 100 kg.
Sash Parameter Table
| Parameter | Min | Max |
|---|---|---|
| Sash Width (SW) | 530 mm | 1000 mm |
| Sash Length (SL) | 680 mm | 2000 mm |
| Rated Load | 100 kg |

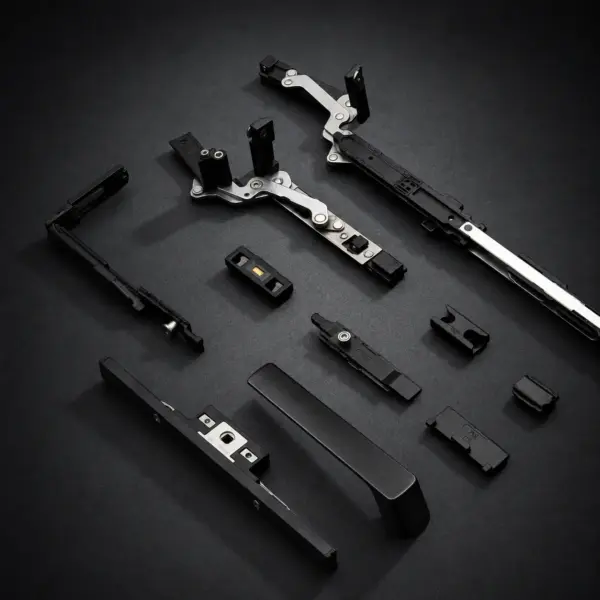

Fitting List
| No. | Product Name | Model | Qty. | Note |
|---|---|---|---|---|
| 1 | Concealed Handle | KVS.N001/2/3 | 1 | Black / White / Silver / Grey / Antique Brass |
| 2 | Extension Rod 13 | KVS.13.BXG | 1 | 11.5 / 13 |
| 3 | Hinge Corner Kit – Left / Right | KVS.NZJB.L/R | 1 | Left / Right |
